Friday, July 19, 2013

ORBIGate, Version 5.0, a new version for the OROS Turbomachinery Vibration Solution!

Discover 3 main new functions to make easier your noise and vibration analysis on turbomachinery:
  • Trigger data collection on multi-channel alarm conditions
  • Capture data at low speed or with no tachometer
  • Load one or several measurements in the navigation mode

Trigger data collection on Multi-channel Alarm Conditions

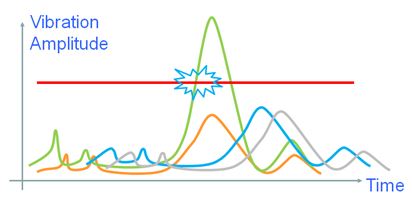

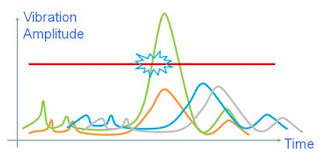

Starting a data recording whenever one of your 32 channels exceeds a user defined threshold? ORBIGate V5.0 makes it possible!

Turbomachinery vibration measurements can be long and vibration troubleshooters don’t always have time to stand behind their instrument to press the record button. In particular during long steady state periods, when waiting for pressure and temperature to stabilize and changing process parameters can increase transient vibrations that are not always expected.

That is the right time to start data recording, time signal recording or just increase the data collection sampling rate! ORBIGate does that automatically.

Capture data at low speed or with no tachometer

Save the ASYNC (FFT) analysis!

Synchronous analysis (Order tracking) is of course the base when dealing with rotating machinery. It has one drawback though: it requires a tachometer signal. In the field, it happens that the tachometer signal is not available: that is exactly when it is key to collect the ASYNC (FFT) results.

ORBIGate allows now to use the full multi-analysis power of your OROS instrument: collecting both Synchronous data and Asynchronous data let you always be sure to get results whatever tachometer information is available.

Load one or several measurements in the Navigation mode

Sort, filter and compare your runs

The new “Load Measurements” let you:

Step 1: Sort and filter his measurements
Step 2: Load one or several start up or shut down for comparison versus RPM

It is particularly useful when your purpose is to compare several start-ups like hot, warm or cold. It is also very useful during multiplane balancing procedures when comparing trial tests.

>> All details are available in the ORBIGate V5.0 release note (available in your myOROS section, OROS customers area, please first be logged in and download the ORBIGate V5.0).
>> If you are not an OROS Customer, please contact us.
